Quick answer: replacing a PS5 HDMI port means lowering the melting point of the factory solder with low-melt alloy, lifting the old port with hot air at about 430°C, cleaning every pad and through-hole with flux and wick while a second heat source offsets the board's thermal mass, then soldering on a new port and testing every joint.
A PS5 that boots with no picture is nearly always the same fault. The console chimes, the power light comes on, the controller pairs — and the TV sits on "no signal". In almost every one of these that lands on my bench, the HDMI port has fractured its solder joints where it meets the motherboard. The part costs a few dollars. The repair is a different story: nineteen signal pins finer than fishing line, soldered to one of the most heat-hungry circuit boards in any consumer device I work on. This article is the actual process, real temperatures included — not to talk you into attempting it, but because I think the work is worth seeing properly. If you just want the fix, the console HDMI repair service page covers pricing, turnaround and postage.
Why the PS5 board fights you
Two things make this job harder on a PS5 than the same repair on almost anything else.
The first is the board itself. The PS5 motherboard is thick, dense, and layered with heavy copper ground planes — great for feeding a hungry APU, terrible for soldering. Every one of those copper layers behaves like a heatsink. Put an iron on a joint and the board wicks the heat sideways faster than the iron can supply it. Solder that flows instantly on a phone board just sits there going nowhere on a PS5. Repair techs call it thermal mass, and this board has more of it than nearly anything else that crosses my bench.
The second is the port. Nineteen signal pins plus the shell's through-board anchor legs, all soldered at once, all of which must be molten at the same moment before the port will release. There's no working it pin by pin — by the time an iron has walked around to pin nineteen, pin one has frozen solid again. The whole footprint has to flow together, which is why this is a hot air job from the first minute.
There's a third factor working against the console before it ever reaches me: the factory joints are lead-free solder, which regulations require in mass production. Lead-free is harder and more brittle than traditional leaded solder, and it fatigue-cracks under exactly the kind of sideways cable stress an HDMI plug delivers. Phones fail the same way at their charge ports — I've written about that failure mode separately — but a phone at least gets dropped into a pocket. A console sits behind a TV with a stiff cable levering on the port for years.
Getting to the board
The disassembly is the easy half, and I won't pad this article out with it. Faceplates, shielding, fan, drive, board out of the chassis — screws and clips, tedious rather than difficult. iFixit's PS5 teardown documents that part thoroughly if you want to see inside one.
Once the bare board is on the bench mat, the screwdriver work is over. Everything from here is heat management.
Step one: lower the melting point
Before any hot air touches the board, I work low-melt alloy into every existing joint on the port — all nineteen pins and the shell anchors. Low-melt is a bismuth-based solder that melts far below the factory lead-free joints. Blended into them, it pulls the melting point of the whole joint down with it.
This one step changes the character of the entire repair. Without it, the port needs longer under the gun at higher temperatures, and every extra second pushes more heat into the board and the components around the port. With it, the port releases sooner and the board spends less time cooking. Cheap insurance, and I treat it as non-negotiable on a PS5.
One catch, which matters later: the blended alloy is mechanically weak. Every trace of it has to come off the board before the new port goes on. That's what step three is for.
Step two: the lift, at 430°C
The old port comes off with hot air at around 430°C. On paper that number looks brutal — it's hotter than I'd ever run on a phone board, where 380°C is plenty. On a PS5 it's simply what the job takes. The board's copper is drinking heat the entire time, and the airflow has to outrun that loss to bring all the joints molten together. The 430°C is the air temperature, not the board temperature; the thermal mass that makes this repair hard is also what keeps the board itself well below that figure.
The gun keeps moving over the footprint — parked air in one spot is how neighbouring components get cooked. Then there's a moment every board tech knows: the reflection on the joints changes, everything goes liquid at once, and the port lifts off with tweezers using no force at all. That last part is the discipline. If the port resists, it isn't ready, and pulling on it now is how pads tear off the board. You wait, keep the air moving, and let the solder tell you when.
Step three: flux, wick, and a third hand you don't have
What's left is a footprint full of contaminated solder — the factory lead-free blended with the low-melt alloy — and none of it can stay. The pads need to end up flat and clean, the anchor through-holes completely clear, before a new port will seat.
The tools are simple: flux across the pads, desoldering wick, the iron on top of the wick. The problem is the same one from the start of this article. The board is still stealing heat, and an iron pressing wick against a pad next to a ground plane will sit there achieving nothing while the flux burns off. So the wick pass runs with a second heat source: the hot air gun playing across the area at about 350°C, feeding the board enough background warmth that the iron can actually bring the wick up to temperature and drink the old solder out.
Which means: iron in one hand, hot air gun in the other, and a length of wick that also needs managing. Three things, two hands. It's an awkward, practised juggle — anchoring the wick under the iron tip, sweeping it across the pads, walking the gun in slow passes behind it — and it's precisely the stage where inexperienced attempts fail. Too little support heat and the wick drags across half-solid solder, tearing pads with it. Too much, held too long, and small components nearby start migrating. Slow passes, fresh flux, fresh wick, until every pad is bright and every hole is open.
Step four: the new port goes on
Compared to what came before, fitting the new port is almost relaxing. The anchor legs locate in their through-holes, which self-aligns the nineteen pins over their pads. Anchors get soldered first — they carry the mechanical load every time a cable is plugged in, and I want the port rigid before any signal pin is touched. Then each pin, then every joint inspected under magnification for bridges before the board moves an inch.
The new joints go on with leaded solder, not the lead-free the factory was forced to use, and with a proper fillet rather than the production-line minimum. Repair shops aren't bound by the manufacturing regulations that made the original joint brittle. The port I fit is held on better than the one Sony shipped — that's not a boast, it's just what happens when a joint is built by hand for strength instead of by machine for throughput.
Step five: prove it before it goes back together

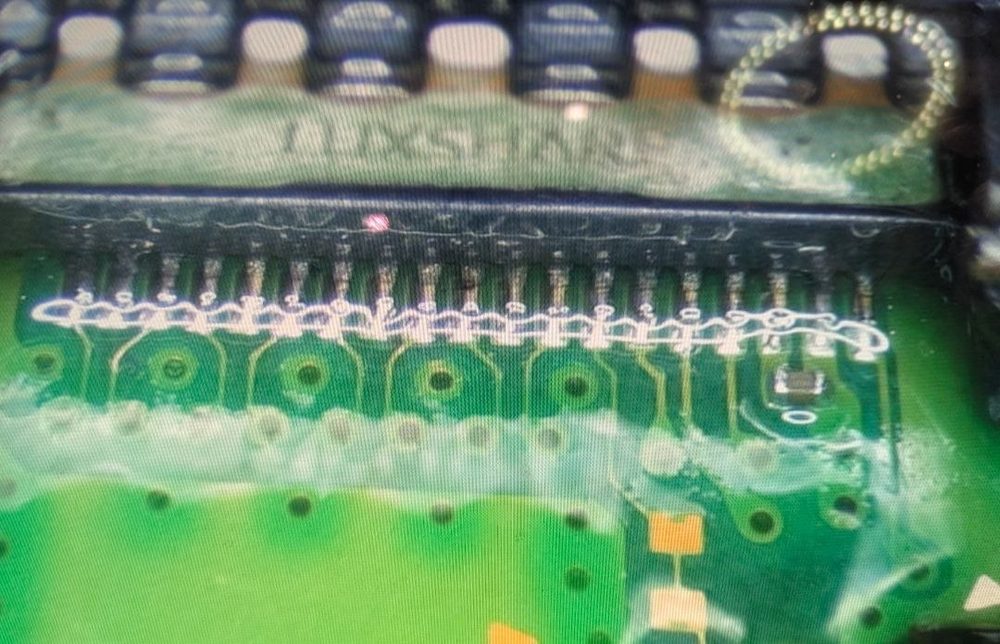

No console gets reassembled on faith. The board goes back into the chassis just far enough to power, and HDMI out runs to a bench display through 1080p, 4K and HDR. Then the wiggle test — deliberate pressure on the cable at the port, in every direction, watching for a single dropped frame. A port that only works with the cable held just so is a failed repair, and it's exactly the symptom most of these consoles arrived with. Only after the picture survives all of that does the console go back together fully, get its thermal work redone, and sit on a soak test before it goes home.
The repair in motion, on the iFix bench.
Where DIY attempts go wrong
Consoles arrive at the workshop after home attempts every month, and the damage follows the same short list. Lifted pads, from an iron parked on a heat-starved joint until something gave — once a pad tears, the trace under it is severed, and the repair becomes microscope work with jumper wire, the same class of job as board-level IC replacement on iPhones. Cooked neighbours, from 430°C air wandering where it shouldn't — tiny capacitors and resistors near the port migrate or stand up on end. Bridged pins, from soldering a fine-pitch connector without magnification. And warped boards, from full heat slammed into a cold board instead of a controlled ramp.
None of that is a talent problem. It's an equipment and repetition problem. Everything in this article assumes a hot air station, low-melt alloy, decent wick and flux, magnification, and enough boards behind you that your hands recognise the moment everything goes molten. If any of that list is missing, the honest move is not to open the console — an untouched board is a routine repair, and a damaged one sometimes isn't economical to save. It's the same principle behind every board-level repair we take on at the Central Coast workshop: the first attempt is the one that decides how hard the job gets.
PS5 booting but the screen stays black?
That's the exact fault this article describes, and an untouched port is a routine bench job — details and turnaround here. Book it in below, or walk in to the Erina workshop with the console. Posting from outside the Central Coast works too; call first.
Call (02) 4311 6146 Book OnlineCommon questions
Why can't you replace the port with just a soldering iron?
Because the port only comes off when all of its joints are molten at the same time. An iron heats one joint at a time, and the PS5's board pulls that heat away almost as fast as the iron delivers it. Try to walk around the port pin by pin and the first joints have frozen solid again before you reach the last ones — then someone gets impatient, levers the port, and tears pads off the board. Hot air heats the whole footprint at once. That's the only way the port releases cleanly.
What is low-melt alloy and why do you add it?
It's a bismuth-based solder alloy with a much lower melting point than the lead-free solder the factory uses. Worked into the existing joints, it blends with the factory solder and drops the melting temperature of the whole joint. The practical effect is that the port releases sooner, at lower risk — less time under the hot air gun means less heat soaking into the board and the components around the port. Every trace of it gets cleaned off with wick afterwards, because the blended alloy is mechanically weak and must not end up in the final joints.
Doesn't 430°C hot air damage the motherboard?
The airflow is 430°C — the board never gets anywhere near that. The PS5 motherboard is thick, with heavy copper layers that spread and soak heat continuously, so the joints under the port only climb to melting temperature because the air is set well above it. That same thermal mass is the protection: managed properly, the area around the port stays within safe limits while the joints flow. What does damage boards is the opposite approach — underpowered heat applied for far too long, or high heat wandering over components that were never meant to see it.
What happens if a solder pad lifts off the board?
The copper trace under it is severed, and that signal line is dead until it's bridged. The fix is running a fine jumper wire from the port pin to the next point on that trace, under the microscope — assuming the trace surfaces somewhere reachable. It turns a routine port swap into a much harder repair, which is why so much of the technique in this article exists specifically to keep pads on the board. Most of the DIY consoles I see have at least one lifted pad by the time they reach the bench.
Is the new port as strong as the original?
Stronger. Factories are required to use lead-free solder, which is brittle and prone to fatigue cracking, and they apply the minimum amount that makes an electrical connection. A repair workshop isn't bound by those production rules, so the new port goes on with leaded solder — which is mechanically tougher — and a proper fillet around each anchor and pin rather than the factory minimum. The joint that failed was built for the assembly line. The one that replaces it is built for years of someone plugging and unplugging a cable.
How long does the board-level work take?
The bench work itself — alloy, removal, cleanup, new port, inspection — is somewhere between 60 and 90 minutes on a clean job. A job stops being clean when there's previous damage under the port: lifted pads, torn traces, or an earlier repair attempt. The full turnaround is around 7 days, which covers diagnosis on arrival, sourcing the correct port for the board revision, the soldering work, and bench testing through 1080p, 4K and HDR before it goes back together.
Is it worth repairing, or should I just replace the console?
Almost always worth repairing. The fault is one connector on an otherwise healthy console — the APU, storage and power stages are all fine, and your games, saves and account stay exactly where they are because the repair never touches storage. A port replacement is a fraction of the cost of a new console, and the repaired joint holds up better than the factory one did. The exception is a board with extensive damage from a failed repair attempt, which is a bigger job — and part of why I'd rather see the console before anyone else opens it.
